AAP audio S-4800
Mã sản phẩm:
Hãng:
Thương hiệu:
Lắp ráp tại:
☑️Còn hàng Mới 100%
Bảo hành:
Có ngay giá Tốt Nhất! Khi Gọi Mr Nam: 0972962840 - 0378141268
Giá Khuyến Mại:

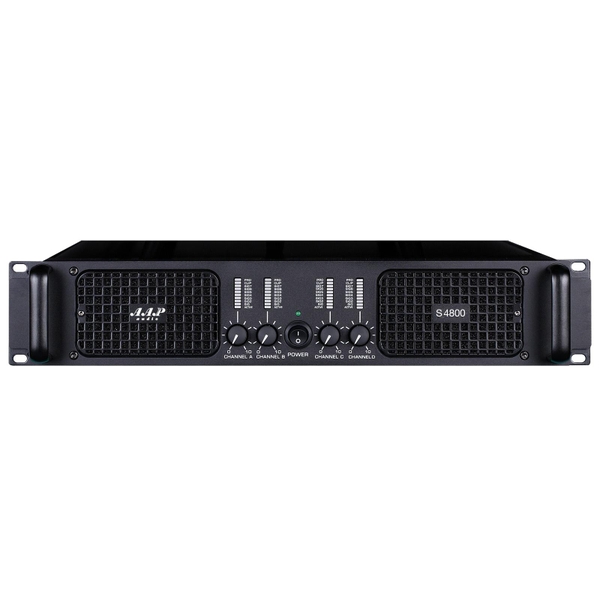

AAP audio S-4800
4 channel amplifier features:
1. 2U size, very big power, it can drive 4 piece 15 inch full range speakers.
2. Use class H circuit, with very high efficiency power conversion, strong power output, low power consumption, environmentally.
3. Use Japan Sanken transistor, it can assure the sound low frequency full, high frequency smooth.
4. Front panel with very good gain control: power LED, signal LED, clip LED, Protect LED.
5. Perfect protects function show in the front panel. Such as, DC fault, temperature protection, under voltage protecton; overload protection, pressure limit etc protect circuit.
6. From the front to the back cooling exhaust system design, it can assure the amplifier works very stable anh reliable in long time
7. Support 4 ohm impedance. The back panel has mode option switch and sensitivity 0.775V/1.0V/1.4V option
8. High quality components. We have very strict quality control management system; this can assure our amplifier high quality. The front panel use 4MM aluminum, the dust-proof grill can open easily to clean, it can prolong the amplifier’s use time.
|
Model |
S-4300 |
S-4400 |
S-4600 |
S-4800 |
|
8Ω Stereo power |
4 x 300W |
4 x 400W |
4 x 600W |
4 x 800W |
|
4Ω Stereo power |
4 x 450W |
4 x 600W |
4 x 900W |
4 x 1200W |
|
8Ω bridged Stereo power |
900W + 900W |
1200W + 1200W |
1800W + 1800W |
2400W + 2400W |
|
Channel |
4 |
|||
|
Output connectors |
Speakon Connectors |
|||
|
Frequenty response |
20Hz - 30kHz +- 0.5dB |
|||
|
Signal noise ration (dB) |
110dB |
|||
|
THD + N (rated power, 40/kHz)% |
< 0.1% |
|||
|
Input connectors |
Combo XLR type, 3pin |
|||
|
Link connectors |
XLR type, 3 pin male |
|||
|
Input impedance |
（20Hz-20kHz, balanced)； 20k Ohm Balanced or 10k Ohm Unbalanced |
|||
|
Input gain |
Rear panel: 0.775V/1.0V/1.4V |
|||
|
Fan |
3 PCS temperature control cooling Fan |
|||
|
Protection |
temperature , DC, sub/ultea-sonic, short Circuit, over load, IGM, output |
|||
|
Indicators (per channel) |
Protect indicator, Signal indicator, Work indicator |
|||
|
Power requirement |
220 - 240V ~ 50 - 60Hz |
|||
|
Airframe |
483 x 439 x 88 mm |
|||
|
Transport dimensions |
623 x 575 x 143 mm |
|||
|
Weight (net) |
24 kg |
26 kg |
29 kg |
32 kg |
|
Gross weight |
26 kg |
28 kg |
31 kg |
34 kg |
