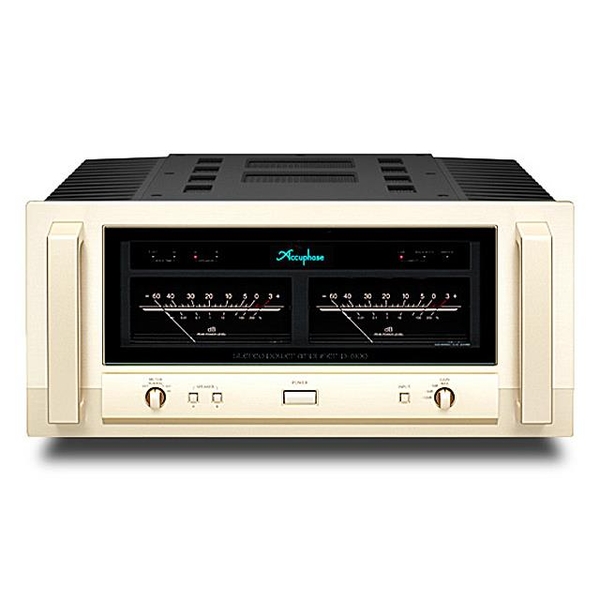

Accuphase P-6100

Thông số kỹ thuật

● Rated Continuous Average Output Power (at 20 - 20,000 Hz)
　　Stereo use 700 W/ch 1-ohm load＊
　　 (both channels operating 440 W/ch 2-ohm load
　　 simultaneously) 220 W/ch 4-ohm load
110 W/ch 8-ohm load
　　Monophonic use　 1,400 W 2-ohm load＊
　　 (Bridge connection) 880 W 4-ohm load
440 W 8-ohm load
　　＊These loads are for music signals only.
● Total Harmonic Distortion Stereo use (both channels operating simultaneously)
0.05% 2-ohm load
0.03% 4 to 16 ohm load
Monophonic use (Bridge connection)
0.03%　4 to 16 ohm load
● IM Distortion 0.01%
● Frequency Characteristics At rated continuous average output: 20 – 20,000 Hz +0, -0.2 dB
At 1-W output: 0.5 – 160,000 Hz +0, -3.0 dB
● Gain　 28 dB (when GAIN switch set to MAX)
(Same for both stereo and monophonic use)
● GAIN switch settings　 MAX, -3 dB, -6 dB, -12 dB
● Load Impedance Stereo use: 2 – 16 ohms
Monophonic use: 4 – 16 ohms
● Damping Factor 500 (Same for both stereo and monophonic use)
● Input Sensitivity (at 8-ohm load, with GAIN switch set to MAX)
　　Stereo use 1.18 V at rated continuous average output
0.11 V at 1-W output
　　Monophonic use 2.36 V at rated continuous average output
0.11 V at 1-W output
● Input Impedance Balanced: 40 k ohms
Line (Unbalanced): 20 k ohms
● S/N (A-weighted) 120 dB when GAIN switch set to MAX
125 dB when GAIN switch set to -12 dB
(At rated continuous average output)
● Output Meters Logarithmic compression type; illumination turn-off capability;
-60 dB to +3 dB (indication in both dB and %);
switchable peak hold time: 3 sec, ∞
● Power Requirements　 AC 120 V/230 V, 50/60 Hz
(Voltage as indicated on rear panel)
● Power Consumption 170 W (with no input)
670 W in accordance with IEC 60065
● Maximum Dimensions Width 465 mm (18-5/16")
Height 221 mm (8-11/16")
Depth 499 mm (19-5/8")
● Mass 42.7 kg (94.1 lbs) net
51.0 kg (112.4 lbs) in shipping carton
